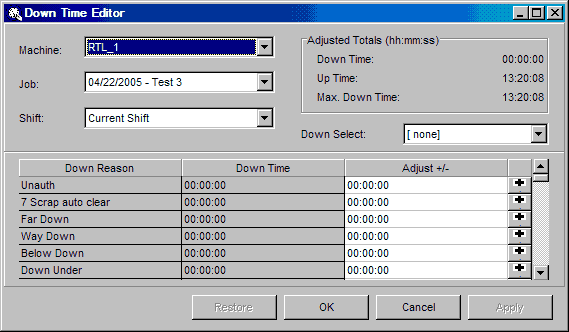

Down Time Editor
The Down Time Editor window displays a table of down time for a specified machine, job, and shift. There is one row of information in the table per down reason. Incorrect time values for a job can be corrected in this window.
Adjustments can be made upward or downward for each defined reason. Adjusted totals cannot, though, be negative. There is one row of information in the table for each down reason. Use the "Adjust +/-" column to make any necessary adjustments.
A machine can also be forced into a down state from the Down Select field on this window. When a machine enters a forced down state, its associated DCM may or may not continue to count parts and monitor process variable information. The action taken depends upon how the down reason which triggered the "force down" is defined in terms of its force down flag and ignore cycles flag. These flags are set on the Down Reason Sets window.
|
|
| · | Click on the History menu.
|
| · | Choose the Down Time Editor option.
|
What do you want to know about?
|
|
| · | Changing Machines
|
| · | Changing Jobs
|
| · | Changing Shifts
|
| · | Adjusting Times
|
| · | Forcing a Machine Down
|
| · | Saving your Changes
|
| · | Undoing your Changes
|
| · | Closing the Window
|
